Bitumen pump we have jacketed gear pump and screw pump two kinds. Pump made of Cast steel. The applicable temperature is less than 350 degrees. Jacketed bitumen gear pump inlet and outlet:1″ 2″ 3″ 4″ 6″ 8″ 10″ inch. This pump mainly used for bitumen transfer.We are in China.
Gear Bitumen Pump:
Pump material: pump body cast steel. Gear shaft is alloy steel. Pump body has a complete heating jacket. Excellent heating performance.
Flow range: 2~150M3/H; Head:0.6MPA.
Drive mode: motor drive.(If you need pump with motor,please tell us motor Volts and Hertz).
Inlet/Outlet: This pump is flanged link. If you need counter flange,we can offer.
There are two kind of seal forms in the shaft end, namely packing seal and mechanical seal.

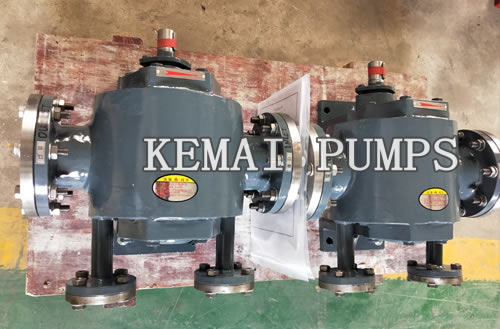

Jacketed Gear Pump
Bitumen Pump Manufacturers In China
3 Inch Gear Bitumen Pump
Electrically Heated Pump For Bitumen Asphalt

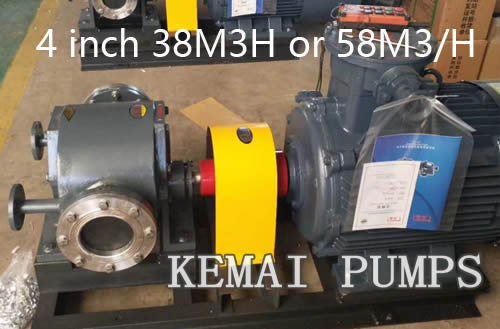

4 Inch Bitumen Gear Pump With Jacketed
Notes:
- Pressure can be set according to customers requirement! needs!
- Adopt special alloy pump if it delivers the medium with more solid particles.
- If you don’t have thermal oil, We also provide electrically heated bitumen pump.
Gear Bitumen Pump Flow And Head Data Form:
| Model | FlowL/min | FlowM³/h | Pressure (Mpa) | Suction(m) | Inlet (mm) | MotorPower(kw) | MotorType |
| GA33/0.6 | 33.3 | 2 | 0.6 | 3 | Φ25 | 1.5 | Y100L-6 |
| GA50/0.6 | 50 | 3 | 0.6 | 3 | Φ25 | 2.2 | Y100L-4 |
| GA66/0.6 | 66.6 | 4 | 0.6 | 3 | Φ40 | 2.2 | Y112M-6 |
| GA100/0.6 | 100 | 6 | 0.6 | 3 | Φ40 | 4 | Y112M-4 |
| GA133/0.6 | 133 | 8 | 0.6 | 3 | Φ50 | 5.5 | Y132M-6 |
| GA200/0.6 | 200 | 12 | 0.6 | 3 | Φ50 | 7.5 | Y132M-4 |
| GA300/0.6 | 300 | 18 | 0.6 | 3 | Φ80 | 7.5 | Y160M-6 |
| GA483.3/0.6 | 483.3 | 29 | 0.6 | 3 | Φ80 | 11 | Y160M-4 |
| GA633/0.6 | 633 | 38 | 0.6 | 3 | Φ100 | 15 | Y180L-6 |
| GA960/0.6 | 960 | 58 | 0.6 | 3 | Φ100 | 22 | Y180L-4 |
| GA1200/0.6 | 1200 | 72 | 0.6 | 3 | Φ150 | 37 | Y280S-8 |
| GA1600/0.6 | 1600 | 95 | 0.6 | 3 | Φ150 | 45 | Y280S-6 |
| GA1800/0.6 | 1800 | 108 | 0.6 | 3 | Φ200 | 55 | Y315S-8 |
| GA2500/0.6 | 2500 | 150 | 0.6 | 3 | Φ200 | 75 | Y315S-6 |

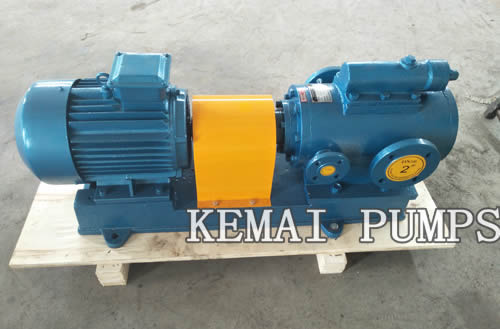

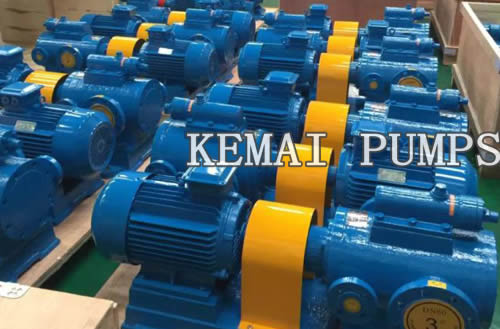

Screw Bitument Pump:
Compared with gear pump, screw pump transport pressure higher. Higher prices.
Flow range: 6~96M3/H; Head:0.6MPA. 1.0MPA.
Drive mode: motor drive.(If you need pump with motor,please tell us motor Volts and Hertz).
Inlet/Outlet: Below have a table below that you can check.
Seal: mechanical seal.
Screw Bitumen Pump Flow And Head Data Form:
| Model | FLOW(M3/H) | HEAD(Mpa) | Inlet/Outlet(mm) | Motor Power(KW) |
| 45X2-46 | 6 | 0.6 | 40/40 | 2.2KW-4P |
| 45X2-46 | 6 | 1 | 40/40 | 3KW-4P |
| 54X2-46 | 8 | 1 | 50/50 | 3KW-6P |
| 54X2-46 | 14 | 0.6 | 50/50 | 4KW-4P |
| 54X2-46 | 14 | 1 | 50/50 | 5.5KW-4P |
| 80X2-46 | 25 | 0.6 | 80/65 | 7.5KW-4P |
| 80X2-46 | 25 | 1 | 80/65 | 11KW-4P |
| 90X2-46 | 52.5 | 0.6 | 100/100 | 15KW-4P |
| 90X2-46 | 52.5 | 1 | 100/100 | 18.5KW-4P |
| 100X2-46 | 72 | 0.6 | 125/125 | 18.5KW-4P |
| 100X2-46 | 72 | 1 | 125/125 | 22KW-4P |
| 110X2-46 | 96.7 | 0.6 | 150/150 | 30KW-4P |
| 110X2-46 | 96.7 | 1 | 150/150 | 45KW-4P |
