Multistage Centrifugal Pumps Horizontal And Vertical
China kemai multistage pumps Materials: cast iron, cast steel, ductile iron(QT), stainless steel(SS304 316 316L)

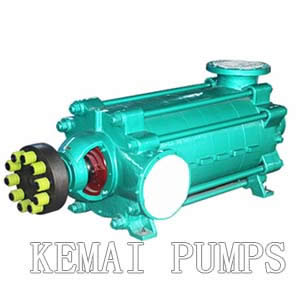

Horizontal multistage centrifugal pumps
D, DG, DY, DM horizontal multistage centrifugal pumps suitable for mines, factories and urban water supply and drainage, used to transport water without solid particles or liquid, physical and chemical properties similar to Yu Qingshui be transported medium temperature 0 ℃ ~ 80 ℃.
Multistage centrifugal pump parameters:
Flow rate:3~1100 m3 / h
Head: 69~2500 m
Horizontal multi-stage centrifugal pump range of the major parts material and the complete set of:
Pump parts materials are cast iron, cast steel, stainless steel 304 316 316 L.
Matching supply pump and motor, base, can match function base or base itself, the manufacturer also provides accessories (including spit taper pipe, gate valve, bottom valve, check valve) and spare parts (including impeller, seal ring, guide vane, the balance disc, shaft sleeve).
From the motor end looked pump is clock

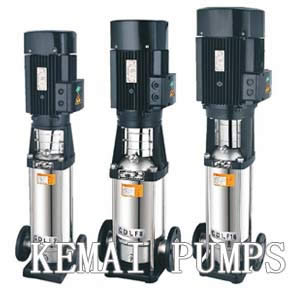

Vertical multistage centrifugal pumps
CDL, CDLF vertical multistage centrifugal pump with a standard vertical machine and fast loading type mechanical seal, the change is very convenient.Pump parts adopt stainless steel (304\316), which can be applied to mild corrosive medium.Compact structure, small volume, light weight, low noise, energy-saving effect is remarkable, maintenance is convenient.
CDL vertical multistage centrifugal pump use scope:
1, used for conveying water or physical and chemical properties similar to clean liquid;
2, delivery should be no solid particles in the liquid, no fiber, no corrosive, no explosion danger;
3, high liquid temperature does not exceed 120 ℃;
4, high working pressure shall not exceed 2.5 MPa;
5, power for 3 phase 380 v, 50 hz.Voltage fluctuation within + / – 5%;
6, ambient temperature should be below 50 ℃, relative humidity below 95%.
